GE Industrial Solutions - New DMS-line
MCB’s, RCCB’s / RCBO’s for domestic installations
Product Overview
The DMS-line MCB and RCD series are designed by GE to meet the requirements for the commercial buildings and high-end residences. It is one of the few manufacturers in Chinese market that provides terminal power distribution products that are fabricated in Europe.
Based on GE’ s Lean 6 Sigma quality control system, DMS-line series have stable performance and reliable quality, and have obtained KEMA, BS certificates in Europe. The DMS-line improved its product appearance and hand feeling, thus it is suitable for the non-professionals and can ensure the high performance for line protection and personal protection.
Product Features
- Europe made products, beautiful and fashionable figuration, human-centered design
- Safety terminals: protects the installer by excluding all risks; Safe installation ensured
- Quality clips; Easy fixation on DIN rail; User friendly and reliable
- Clear identification

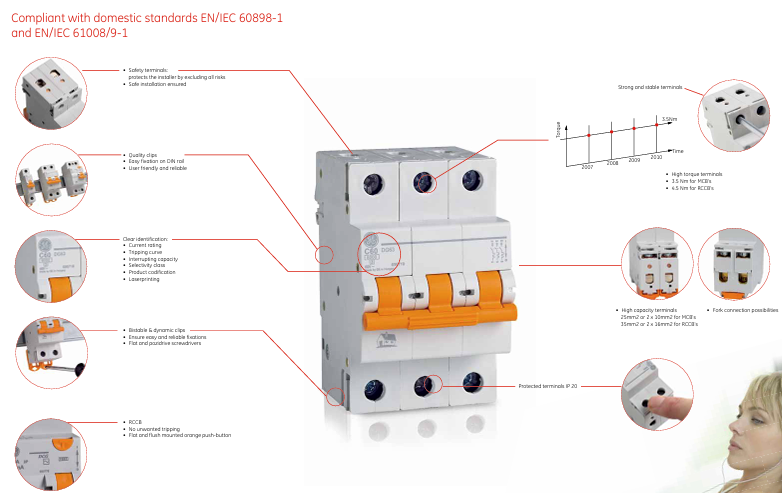

The GE Industrial Solutions New DMS-line offers a comprehensive range of electrical protection devices for domestic installations. These products are compliant with domestic standards EN/IEC 60898-1 and EN/IEC 61008/9-1. Key features include:
- Easy-to-use Clips: For simple and reliable fixation on DIN rails.
- Clear Identification: Products are laser-printed with current rating, tripping curve, and other key details.
- Safety Terminals: Designed to protect installers and ensure safe installation.
- High Torque Terminals: Provides strong and stable connections.
The line includes Miniature Circuit Breakers (MCBs), Residual Current Circuit Breakers (RCCBs), and Residual Current Circuit Breakers with Overcurrent Protection (RCBOs).

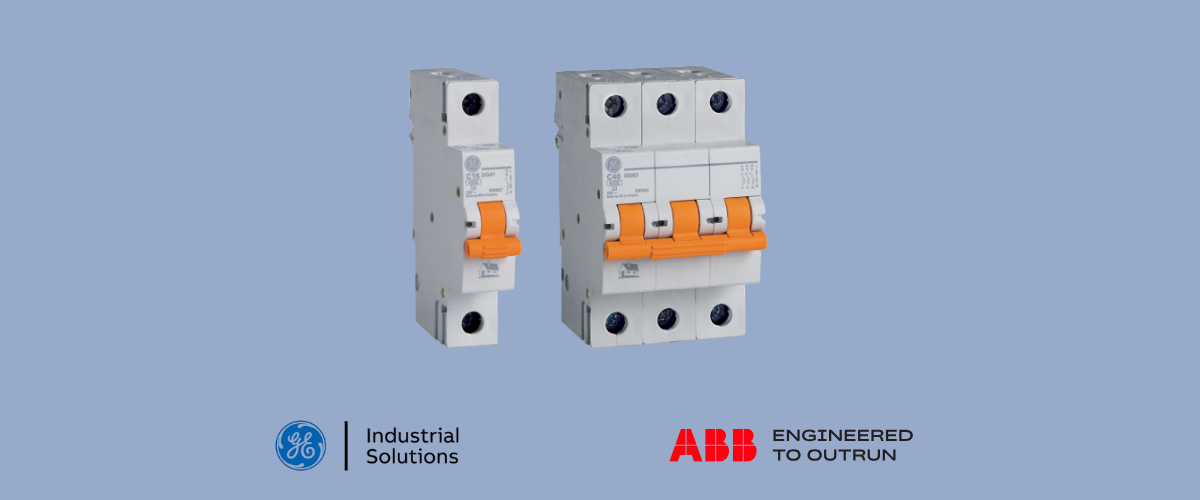

MCB's (DG Series)
The DG series of MCBs are available with B and C tripping characteristics and various pole configurations (1P, 1P+N, 2P, 3P). They have a rated voltage of 230/400V and a short-circuit capacity of 6kA.
Characteristic B
| Poles | In (A) | Cat. No. | Ref. No. |
|---|---|---|---|
| 1P | 6-63 | DG61 B... | 690722-690730 |
| 1P+N | 6-63 | DG61N B... | 690731-690739 |
| 2P | 6-63 | DG62 B... | 690740-690748 |
| 3P | 6-63 | DG63 B... | 690740-690748 |
Characteristic C
| Poles | In (A) | Cat. No. | Ref. No. |
|---|---|---|---|
| 1P | 6-63 | DG61 C... | 690553-690561 |
| 1P+N | 6-63 | DG61N C... | 690562-690877 |
| 2P | 6-63 | DG62 C... | 690569-690576 |
| 3P | 6-63 | DG63 C... | 690577-690585 |
RCCB's (DCG Series) & RCBO's (DDM Series)
The RCCB and RCBO products provide protection against earth faults. They have a rated voltage of 230V (RCBO) and 230/400V (RCCB) and a residual current rating of 30mA or 300mA.
RCBO (DDM Series)
| In (A) | Cat. No. | Ref. No. | Poles |
|---|---|---|---|
| 6 - 40A | DDM60C.../030 | 690788-690794 | 2 |
RCCB (DCG Series)
| In (A) | Residual Current | Poles | Cat. No. | Ref. No. |
|---|---|---|---|---|
| 25, 40, 63 | 30mA | 2, 4 | DCG.../030 | 690776-608419 |
| 25, 40, 63 | 300mA | 2, 4 | DCG.../300 | 690777-608420 |
